2 Stage pump_12.5 bar series

Name:W0.80/12.5
Pump:W0.80
Tank Lt:300
Power Hp/Kw:10/7.5
Cylinder n.:3
Max pressure bar/PSI:12.5/181
Lubricated:YES
RPM:1100
Air Displacement l/min./CFM:980/34.6
Volt/Hz:380/50
Weight kg/lbs:240/529
Dimensions WxDxH(mm):1560×510×1195

Product Description

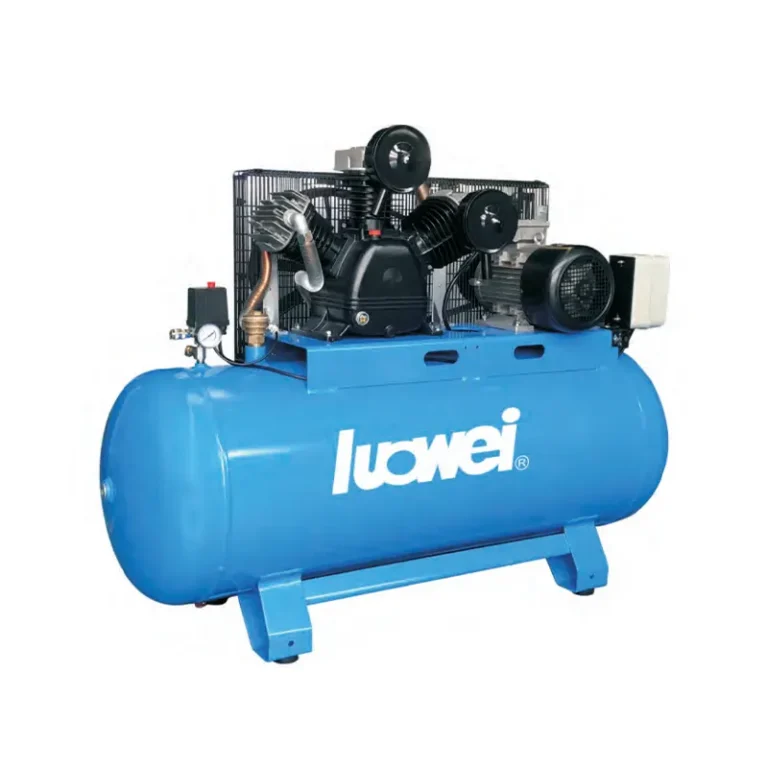

W0.80/12.5

High-efficiency 2 stage pump
12.5 bar pressure use for most industrial & auto field
Heavy-duty design
motive
Brass material Non-return valve
European brand motor starter
Advanced tank design for easier transportion by using a hand-lift
500L Tank as optional
60Hz /440v as optional

Specification

Name	Pump	Tank Lt	Power Hp/Kw	Cylinder n.	Max pressure bar/PSI	Lubricated	RPM	Air Displacement l/min./CFM	Volt/Hz	Weight kg/lbs	Dimensions WxDxH(mm)
W0.80/12.5	W0.80	300	10/7.5	3	12.5/181	YES	1100	980/34.6	380/50	240/529	1560x510x1195
