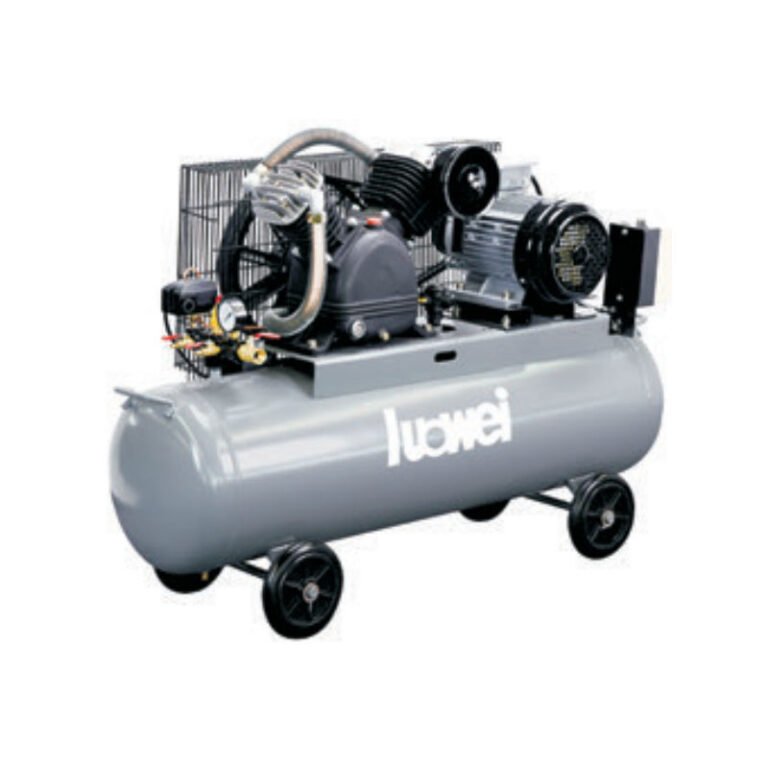

Name:V0.40/12.5
Pump:V0.40/12.5
Tank Lt:170
Power Hp/Kw:5.5/4
Cylinder n.:2
Max pressure bar/PSI:12.5
Lubricated:YES
RPM:1280
Volt/Hz:380/50
Weight kg:190
Dimensions WxDxH:1580x420x1020
Share：
|
V-0.40/12.5 |
|
Specification
| Model | Pump name | Tank Lt | Power HP/kW | Cylinder No. | Max pressure bar | Lubricated | RPM | Air Displacement l/min | Volt/Hz | Weight kg | Dimensions WxDxH |
| V-0.20/12.5 | V0.20/12.5 | 100 | 3/2.2 | 2 | 12.5 | YES | 1250 | 191 | 220/50 | 106 | 1150x480x870 |
| W-0.30/12.5 | W0.30/12.5 | 130 | 4/3 | 3 | 12.5 | YES | 1150 | 366 | 380/50 | 125 | 1520x520x880 |
| V-0.40/12.5 | V0.40/12.5 | 170 | 5.5/4 | 2 | 12.5 | YES | 1280 | 488 | 380/50 | 190 | 1580x420x1020 |
