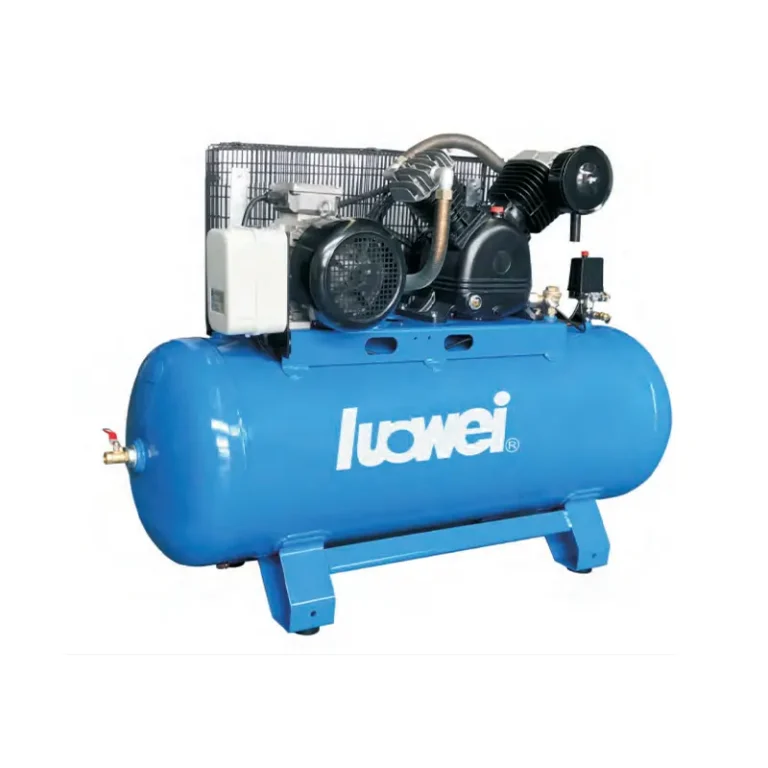

2 Stage pump_12.5 bar series

Name:V0.40/12.5
Pump:V0.40
Tank Lt:200
Power Hp/Kw:5.5/4.0
Cylinder n.:2
Max pressure bar/PSI:12.5/181
Lubricated:YES
RPM:1280
Air Displacement l/min./CFM:488/17.3
Volt/Hz:380/50
Weight kg/lbs:170/374
Dimensions WxDxH(mm):1345×465×1040

Product Description

V0.40/12.5

High-efficiency 2 stage pump
12.5 bar pressure use for most industrial & auto field
Heavy-duty design
motive
Brass material Non-return valve
European brand motor starter
Advanced tank design for easier transportion by using a hand-lift
500L Tank as optional
60Hz /440v as optional

Specification

Name	Pump	Tank Lt	Power Hp/Kw	Cylinder n.	Max pressure bar/PSI	Lubricated	RPM	Air Displacement l/min./CFM	Volt/Hz	Weight kg/lbs	Dimensions WxDxH(mm)
V0.40/12.5	V0.40	200	5.5/4.0	2	12.5/181	YES	1280	488/17.3	380/50	170/374	1345x465x1040
