Cast-iron pump, Advanced belt driven compressor

Home /
Products /
Cast-iron pump, Advanced belt driven compressor

Cast-iron pump, Advanced belt driven compressor

Name:V0.17S/50L
Pump:V0.17S
Tank Lt:50
Power Hp/Kw:2/1.5
Cylinder n.:2
Max pressure bar/PSI:10/145
Lubricated:YES
RPM:1236
Air Displacement l/min./CFM:202/7.1
Volt/Hz:230/50
Weight kg/lbs: 65/143.3
Dimensions WxDxH(mm):796×410×716

Product Description

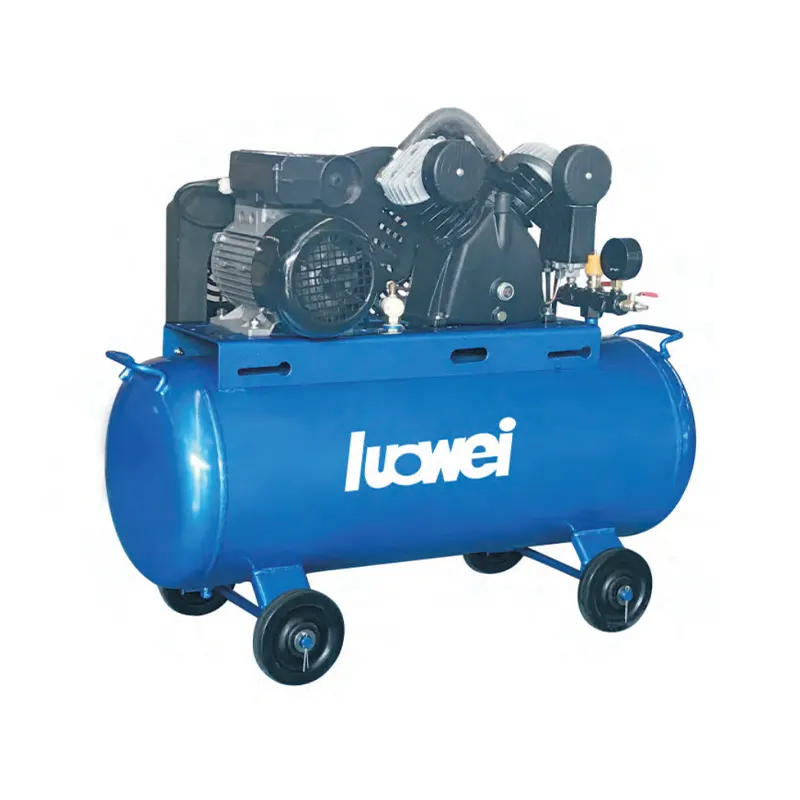

V0.17S/50L

Cast-Iron pump for heavy-duty operation
S1 duty running electric motor with manual reset overload switch
4 Wheel and tank handle in both side for easier moving & transportation

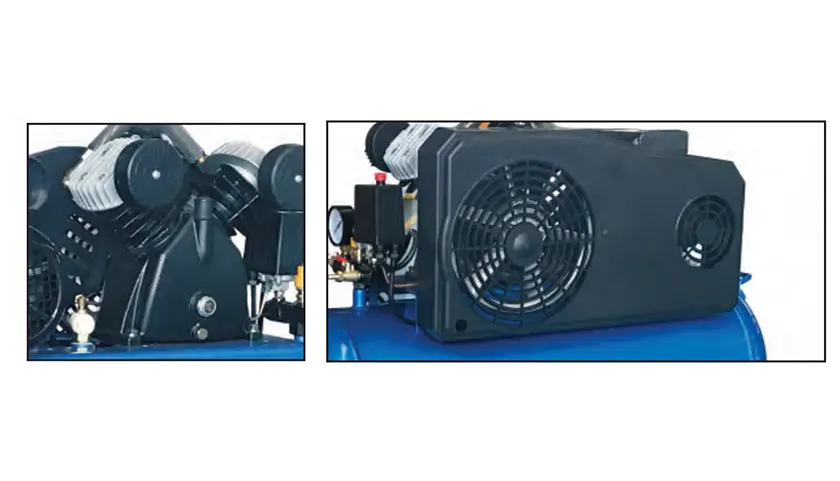

Full size enclosed plastic belt cover for safety with strong industrial plastic
Higher efficiency air capacity
Pump, very stable running pump with precise counter balancing

Specification

Name	Pump	Tank Lt	Power Hp/Kw	Cylinder n.	Max pressure bar/PSI	Lubricated	RPM	Air Displacement l/min./CFM	Volt/Hz	Weight kg/lbs	Dimensions WxDxH(mm)
V0.17S/50L	V0.17S	50	2/1.5	2	10/145	YES	1236	202/7.1	230/50	65/143.3	796x410x716

Technical Parameters
