Electricity:220V/50Hz
Pump:4009
Displacement:2x418L/min
Maximum pressure:10bar
Pressure vessel capacity:300L
Cylinders/stages:2×2/1
Speed:1086rpm
Motor output (Kw):2×2.2
Weight:190kg
Dimensions(LxWxH) in mm:1605x615x1200
Sound pressure level LWA**:81dB(A)
Air outlet:3/4"
Share：
|
4009/270L |
All CE certificated electric components (German Schneider Brand) |

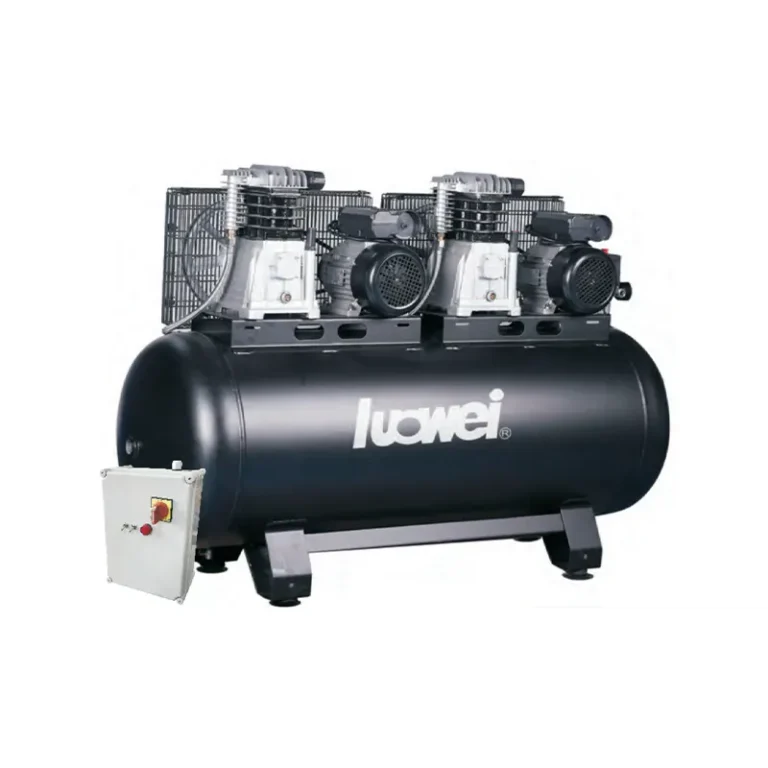

| Model | LUOWEI Tandem 4009/300L/3HP |
| Electricity | 220V/50Hz |
| Technical data | |
| Compressor pump | 4009 |
| Displacement | 2x418L/min |
| Maximum pressure | 10bar |
| Pressure vessel capacity | 300L |
| Cylinders/stages | 2×2/1 |
| Speed | 1086rpm |
| Motor output(Kw) | 2×2.2 |
| Weight | 190kg |
| Dimensions(LxWxH) in mm | 1605x615x1200 |
| Sound pressure level LWA** | 81dB(A) |
| Air outlet | 3/4" |
As an innovation leader in compressor industry, Lida has built a solid foundation of sincere trust and excellent service, making us the right choice for a long-term mutually beneficial working relationship.
