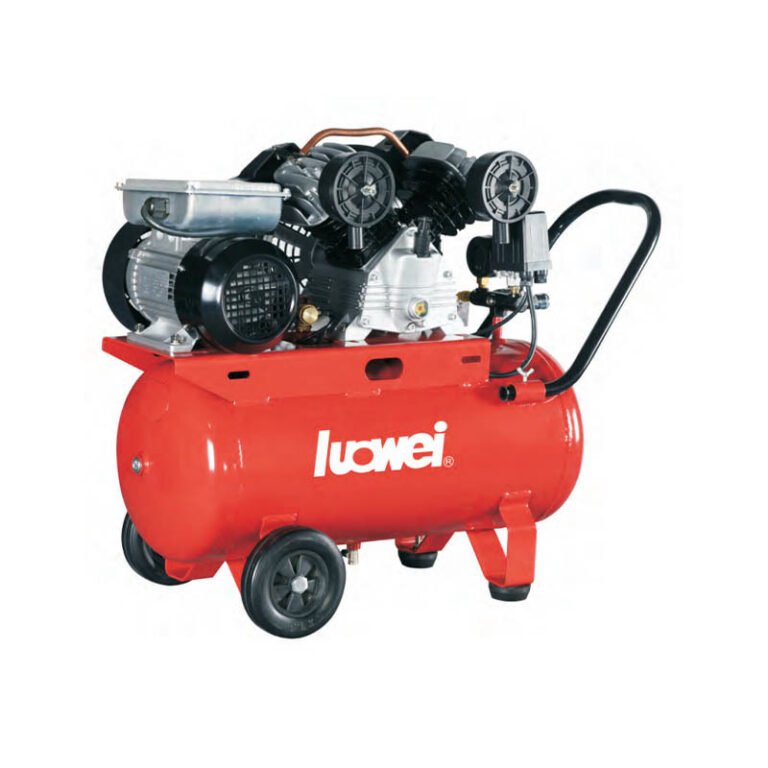

Name:3009N/50L
Pump:3009N
Tank Lt:50
Power Hp/Kw:3/2.2
Cylinder n.:2
Max pressure bar/PSI:10/145
Lubricated:YES
RPM:1100
Air Displacement l/min./CFM:278/9.8
Volt/Hz:230/50
Weight kg/lbs:48/105
Dimensions WxDxH(mm):845x360x685
Share：
|
3009N/50L |
|
Specification
| Name | Pump | Tank Lt | Power Hp/Kw | Cylinder n. | Max pressure bar/PSI | Lubricated | RPM | Air Displacement l/min./CFM | Volt/Hz | Weight kg/lbs | Dimensions WxDxH(mm) |
| 3009N/50L | 3009N | 50 | 3/2.2 | 2 | 10/145 | YES | 1100 | 278/9.8 | 230/50 | 48/105 | 845x360x685 |
* 60HZ (220V, 1⌀) available
