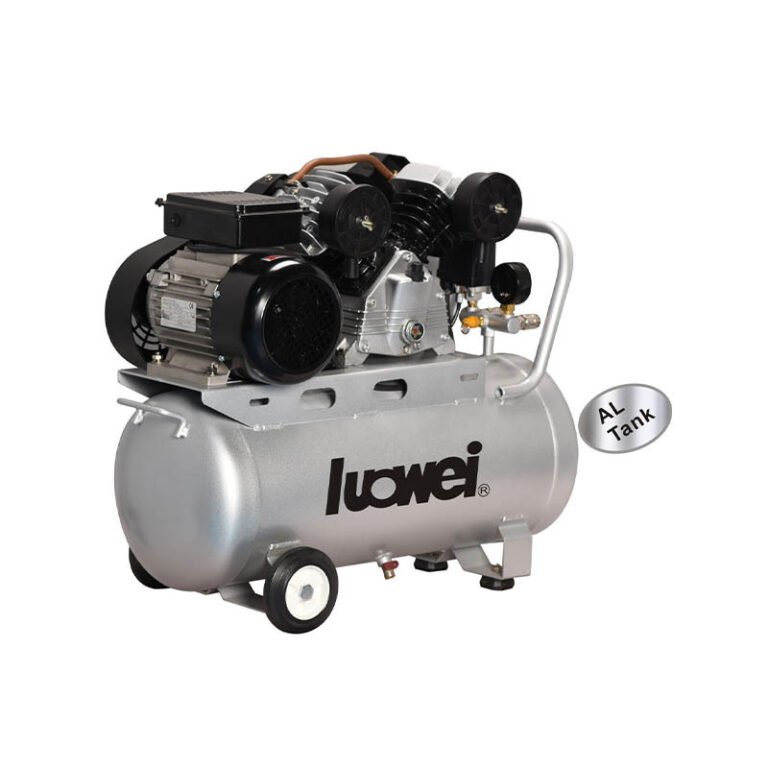

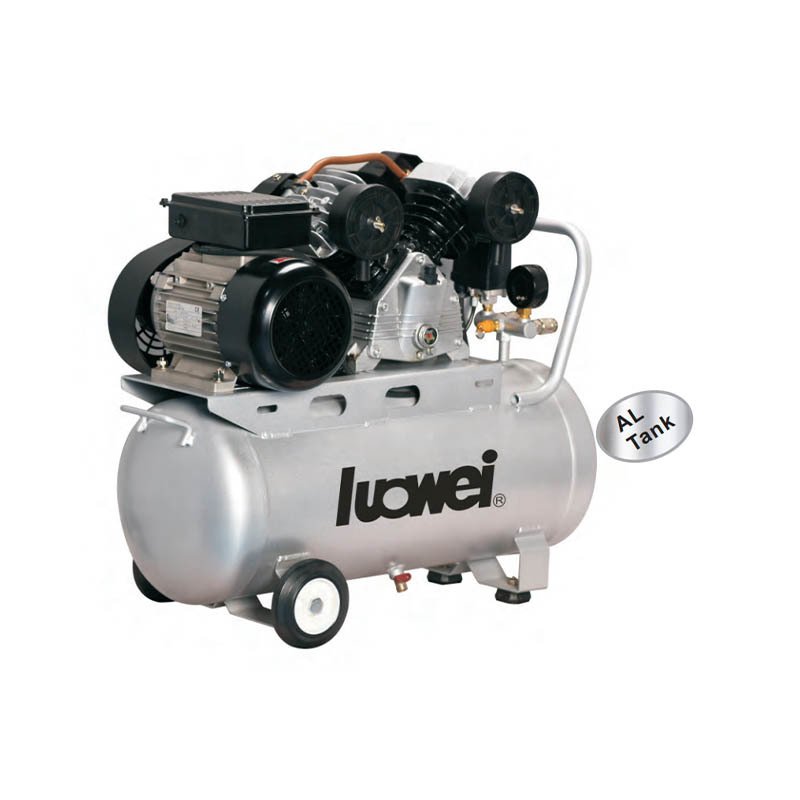

Name:3009N/40L
Pump:3009N
Tank Lt:40
Power Hp/Kw:3/2.2
Cylinder n.:2
Max pressure bar/PSI:10/145
Lubricated:YES
RPM:1100
Air Displacement l/min./CFM:278/9.8
Volt/Hz:230/50
Weight kg/lbs:38/83
Dimensions WxDxH(mm):698x346x663
Share：
|
3009N/40L |
|
Specification
| Name | Pump | Tank Lt | Power Hp/Kw | Cylinder n. | Max pressure bar/PSI | Lubricated | RPM | Air Displacement l/min./CFM | Volt/Hz | Weight kg/lbs | Dimensions WxDxH(mm) |
| 3009N/40L | 3009N | 40 | 3/2.2 | 2 | 10/145 | YES | 1100 | 278/9.8 | 230/50 | 38/83 | 698x346x663 |
* 60HZ (220V, 1⌀) available
