Vertical tank series Cast-iron pump, Advanced belt driven compressor Build for heavy-duty use

Vertical tank series Cast-iron pump, Advanced belt driven compressor Build for heavy-duty use

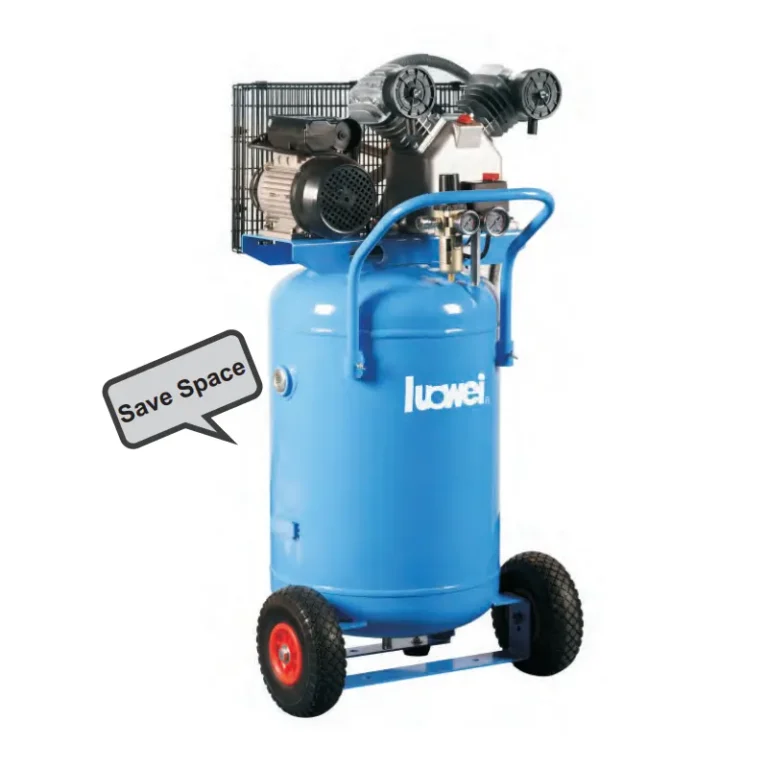

Name:V0.25/100LV
Pump:V0.25
Tank Lt:100
Power Hp/Kw:2.5/1.8
Cylinder:φ65
Cylinder n.:2
Max pressure bar/PSI:10/145
Lubricated:YES
RPM:1033
Air Displacement l/min./CFM:315/11.1
Volt/Hz:230/50
Weight kg/lbs: 91/200
Dimensions WxDxH(mm):664x585x1258

Product Description

V0.25/100LV

Heavy duty pump
European safety belt guard
Pressure regulator with water trap
German Condor pressure switch
Powder coated tank
Glycerin filled pressure gauge
Fit in small space
Solid rubber wheel
Ball valve type drain valve
Available 13bar, 2 stage pump

Specification

Name	Pump	Tank Lt	Power Hp/Kw	Cylinder	Cylinder n.	Max pressure bar/PSI	Lubricated	RPM	Air Displacement l/min./CFM	Volt/Hz	Weight kg/lbs	Dimensions WxDxH(mm)
V0.25/100LV	V0.25	100	2.5/1.8	65	2	10/145	YES	1033	315/11.1	230/50	91/200	664x585x1258
